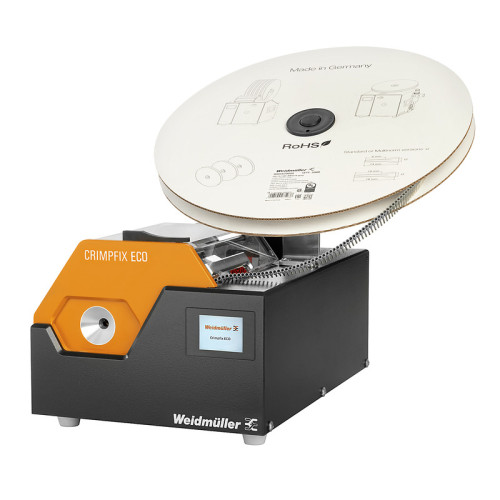

WEIDMULLER - 2833890000 - CRIMPFIX ECO

The CRIMPFIX ECO boasts a range of impressive features that enhance work processes within your company.

It's an electric-only operation, no need for compressed air.

Easy handling, fast processing times, and flexible usage help you overcome some of the challenges typically faced by panel builders today.

Where there is perhaps a lack of trained/experienced professionals in the field, these challenges include the ever-increasing market requirements, reduced time to market, and exceptionally high quality demands.

The CRIMPFIX ECO is a real wonder in the world of automatic crimping machines.

In combination with Weidmüller wire end ferrules, crimps are equipped with UL approvals.

The electrically driven CRIMPFIX ECO automatic crimping machine enables the quick and easy crimping of PVC conductors with wire end ferrules on reel in the cross-section range of 0.5 - 2.5 mm² (~AWG 20-14) with a crimping length of 8 mm.

The ECO can be easily mechanically adjusted for different cross-sections, and the selected size information is displayed.

- Fast processing times
The short insertion length and fast stripping/crimping cycle of the CRIMPFIX ECO ensure quick processing times of less than 1.5 seconds.

- Easy maintenance
The CRIMPFIX ECO is straightforward to maintain. All functional areas are easily visible, enabling quick and easy fault detection and rectification when servicing is required.

- Purely electrical operation
The CRIMPFIX ECO is equipped with a purely electrical drive, therefore offering diverse options for use inside and outside production facilities.

- Simple cross-section change
The entire cross-section range from 0.5 to 2.5 mm² (~AWG20-14) can be processed without changing the mechanical components. The crimping unit, equipped with a parallel, coordinated stripping function, can be changed quickly and intuitively.
