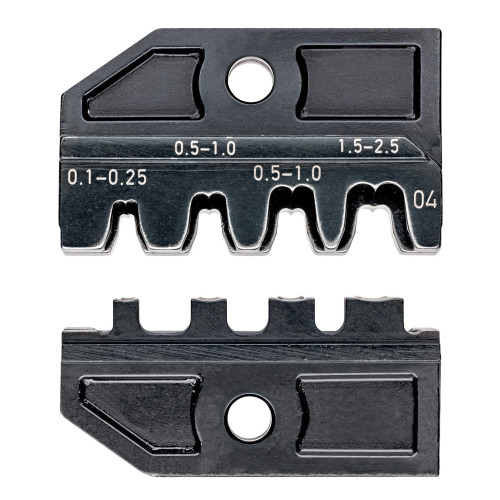

KNIPEX, 97 49 04

97 49 04 Crimping die Application: for non-insulated, open lug connectors > Crimping die 1: 0.1 - 0.25 mm² - plug width 2.8 mm > Crimping die 2: 0.5 - 1.0 mm² - plug width 2.8 mm > Crimping die 3: 0.5 - 1.0 mm² - plug width 4.8 mm > Crimping die 4: 1.5 - 2.5 mm² - plug width 4.8 mm. The additionally available locator 97 49 94 makes it easier to guide the contact during the crimping process. Not suitable for special contact series such as Tyco Electronics, Molex, JST etc Application: non-insulated open plug type connectors (plug width 2.8 + 4.8 mm) 0.1 - 2.5 mm². - Application: non-insulated open plug type connectors - plug width 2.8 + 4.8 mm- Capacity in square millimetres: 0.1 — 2.5mm²- Number of crimp profiles: 4- AWG: 26 — 14
