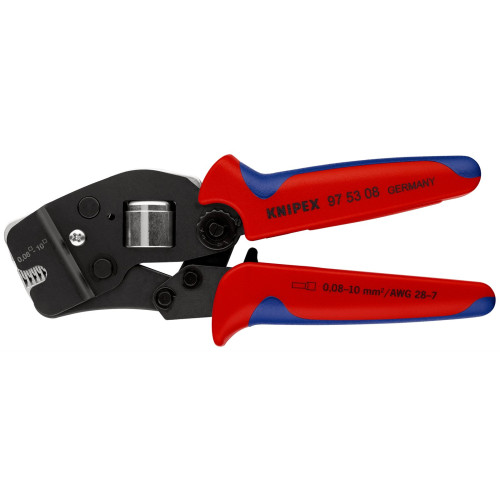

KNIPEX, 97 53 08

97 53 08 Self-Adjusting Crimping Pliers for wire ferrules For crimping wire ferrules according to DIN 46228 parts 1 + 4. Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die. Frontal insertion of the wire ferrules into the pliers. Repetitive, high crimping quality due to ratchet mechanism (unlockable). Precise, factory calibrated crimping pressure. High crimping force due to efficient lever action. Handy shape and low weight provide high operation comfort. Approved crimping according to UL in conjunction with KNIPEX wire ferrules 97 99 330 - 399. compression from 0.08 - 10.0 mm² in one profile. wire ferrules up to 2.5 mm² can also be loaded parallelly from the side. suitable in particular for all twin wire ferrules up to 2 x 4 mm² or 2 x AWG 12. - Application: Wire ferrules- Capacity in square millimetres: 0.08 — 10mm²- Number of crimp profiles: 1- AWG: 28 — 8
